| MOQ: | 1개 세트 |
| 가격: | $70,000-380,000 |
| 표준 포장: | 바다 가치있는 포장 |
| 배송 기간: | 90-150 일 |
| 결제 방법: | L/C, T/T |
| 공급 능력: | 달 당 최대 20sets |
Adhesive Coating Extrusion Coating Machine Max 300kg/H Or 450kg/H Output

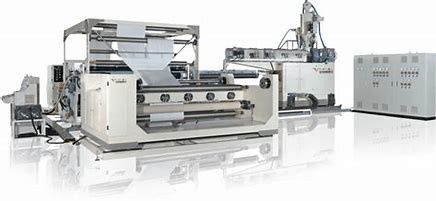

1. Thermal Film Extrusion Laminating Machine
Technical parameters
| Machine width | 1700/2150/2350mm |
| Effective width | Max 1600/2000/2200mm |
| Machine speed | 250-300m/min |
| Screw diameter | LD-90mm/LD-100mm/LD-115mm |
| Extruder output | Max 300kg/h,300kg/h or 450kg/h |
| Used resins | Coated resins like EVA |
| Coating thickness | 5-45μm |
| Maxdiameter | Unwinder:Φ800mm;Rewinder:Φ800mm |
| Basic material | Plastic films |
| Dimension(L*W*H) | 22.8*13*5.5m |
Jiangsu Laiyi designs and manufactures extrusion laminating/coating lines on the strength of a thorough expertise in the co-extrusion of special polymers - customized and modular layout to meet the demand for special products; - chill-roll unit with precise temperature control - rapid cooling system - special winders and unwinders suitable for any final application.
Jiangsu Laiyi extrusion and co-extrusion units at the forefront of technology, boasting a high manufacturing quality with components suitable for processing also corrosive polymers. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.
1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .
2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed
3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple
4) Hydraulic lamination structure design , can make coating thinner and firm .
5) Trimming device make the finished coated paper rolls even
6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible
|
|
